Generator Stator Suzuki SV650 '99-'02 (RM01569)

Price
$369.99
SKU: RMS01569

Please note: Most product is available online only. Please contact us to confirm instore availability before visiting.

Out of stock

Stock Notification

Get notified when this product is available again

Free Shipping

On orders over $199

Share Post Pin E-mail

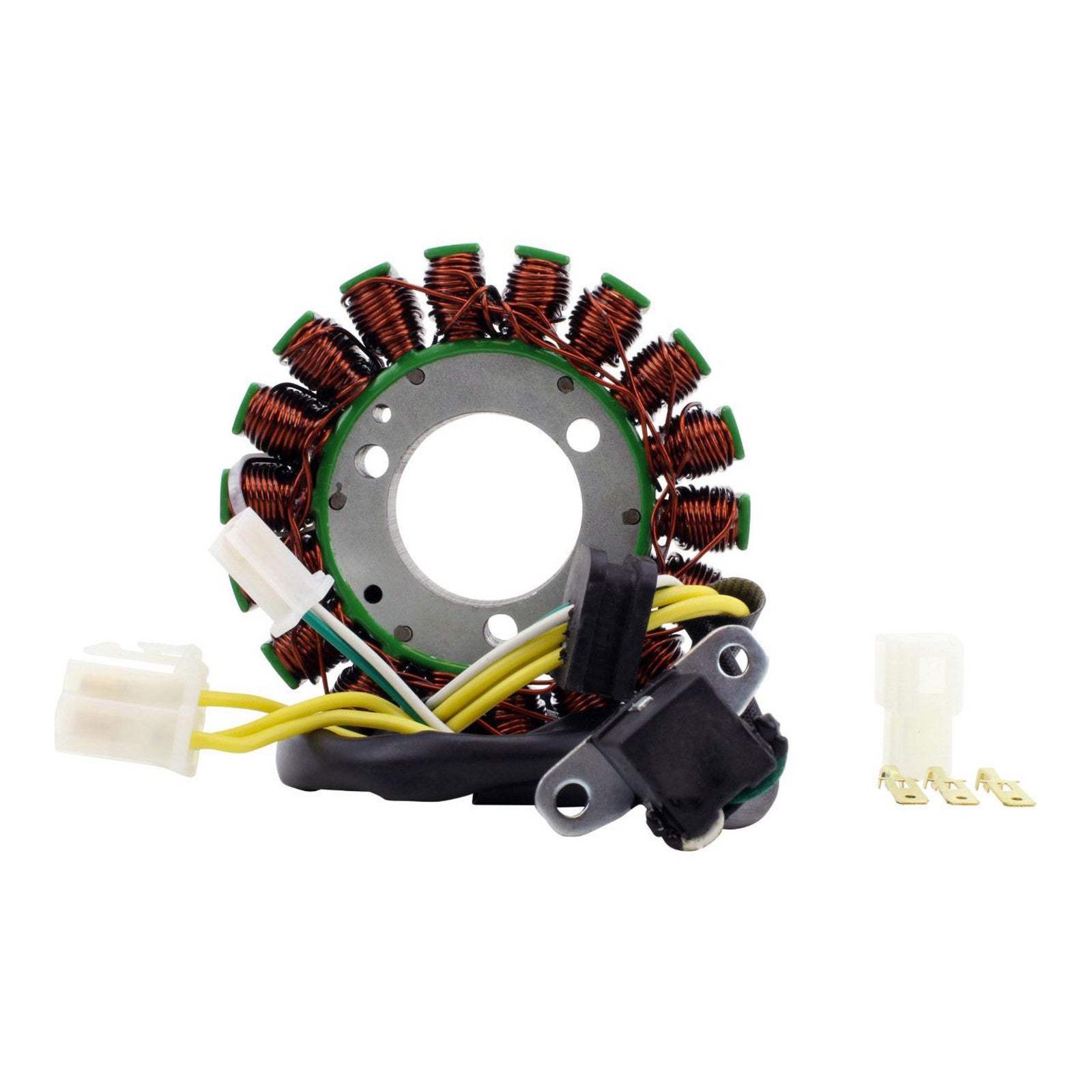

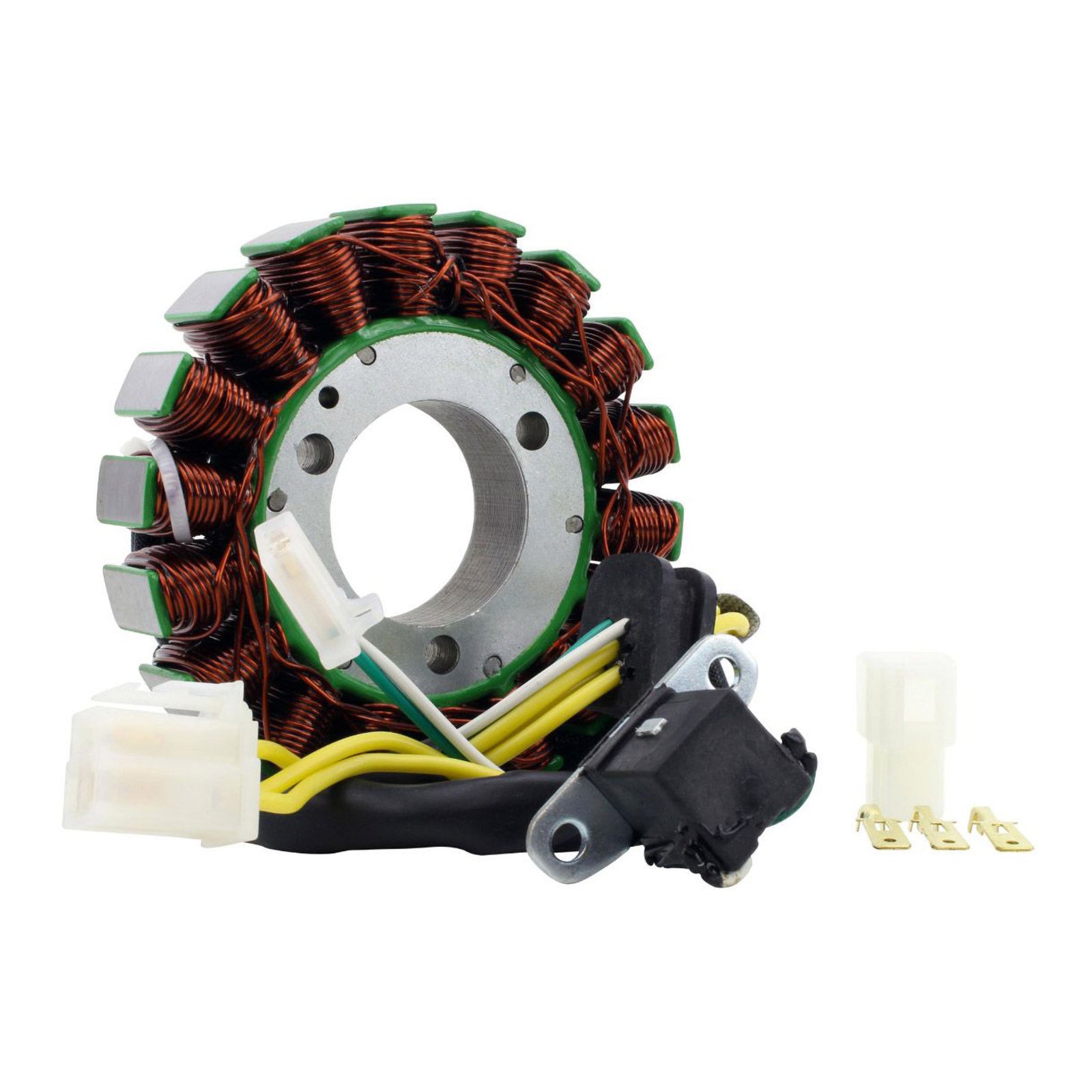

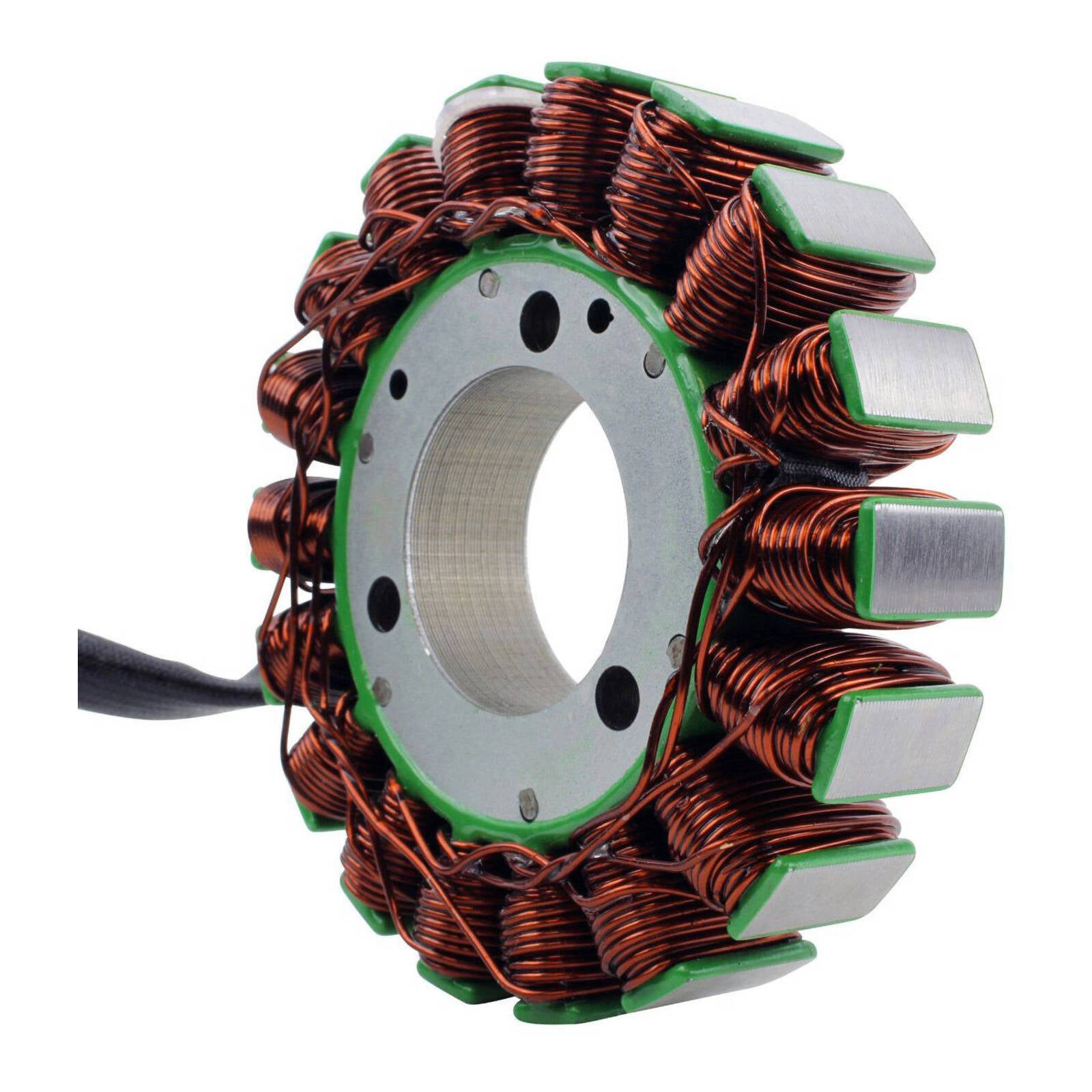

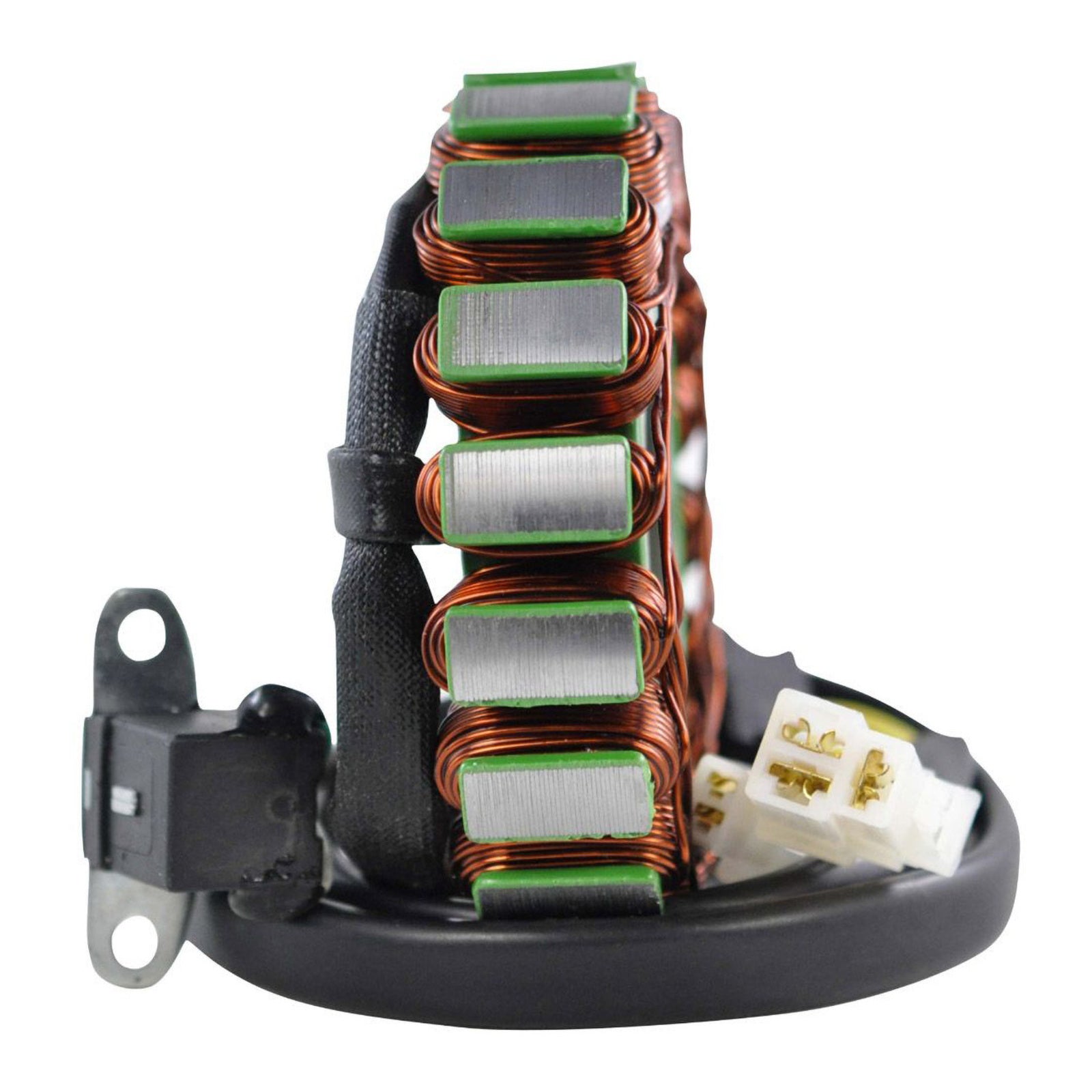

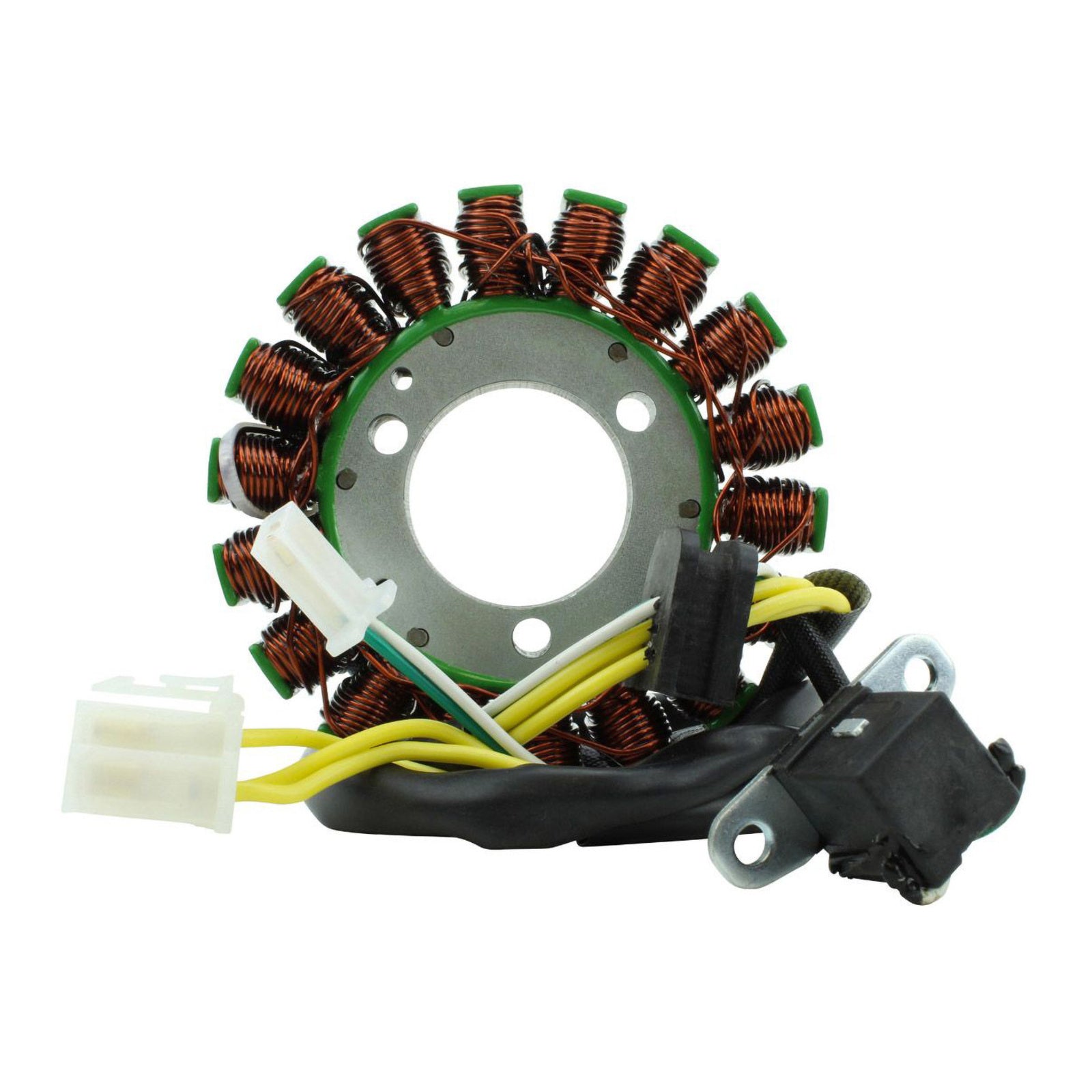

Plug-and-play replacement generator stator from RM Stator.

Details:

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius
  • Pick up pulsar coil included

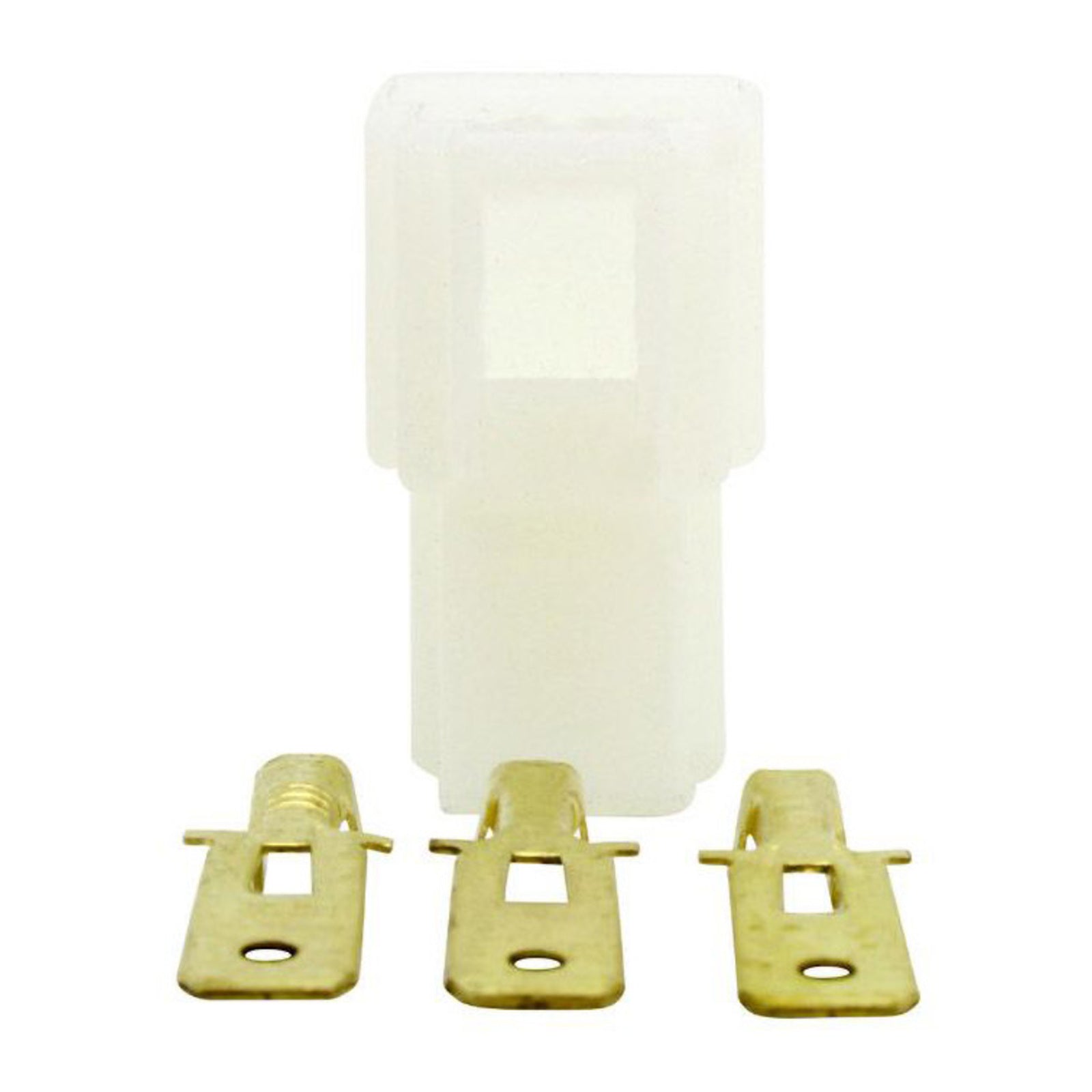

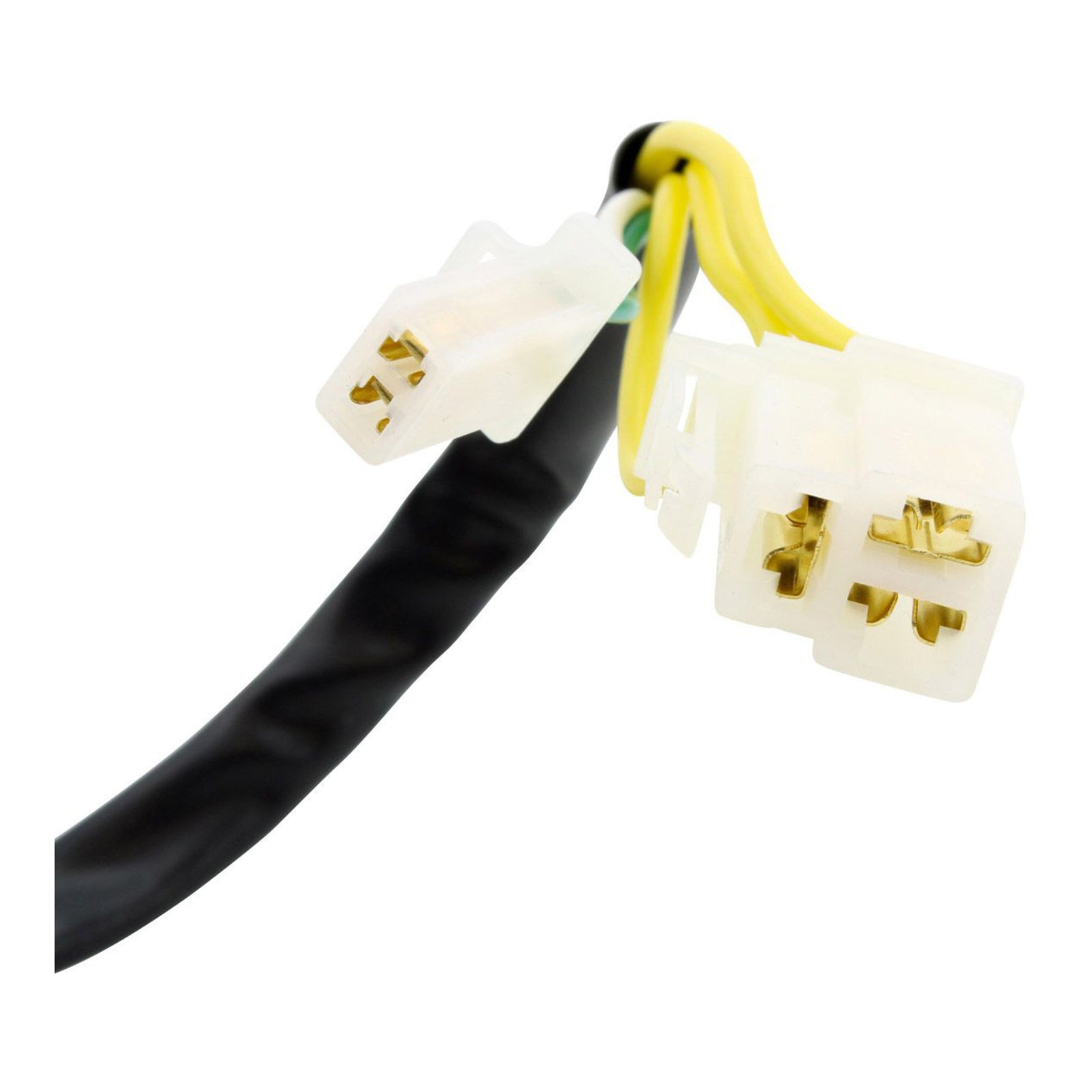

  • Connector included
  • Rubber grommet included
  • All products shipped are tested

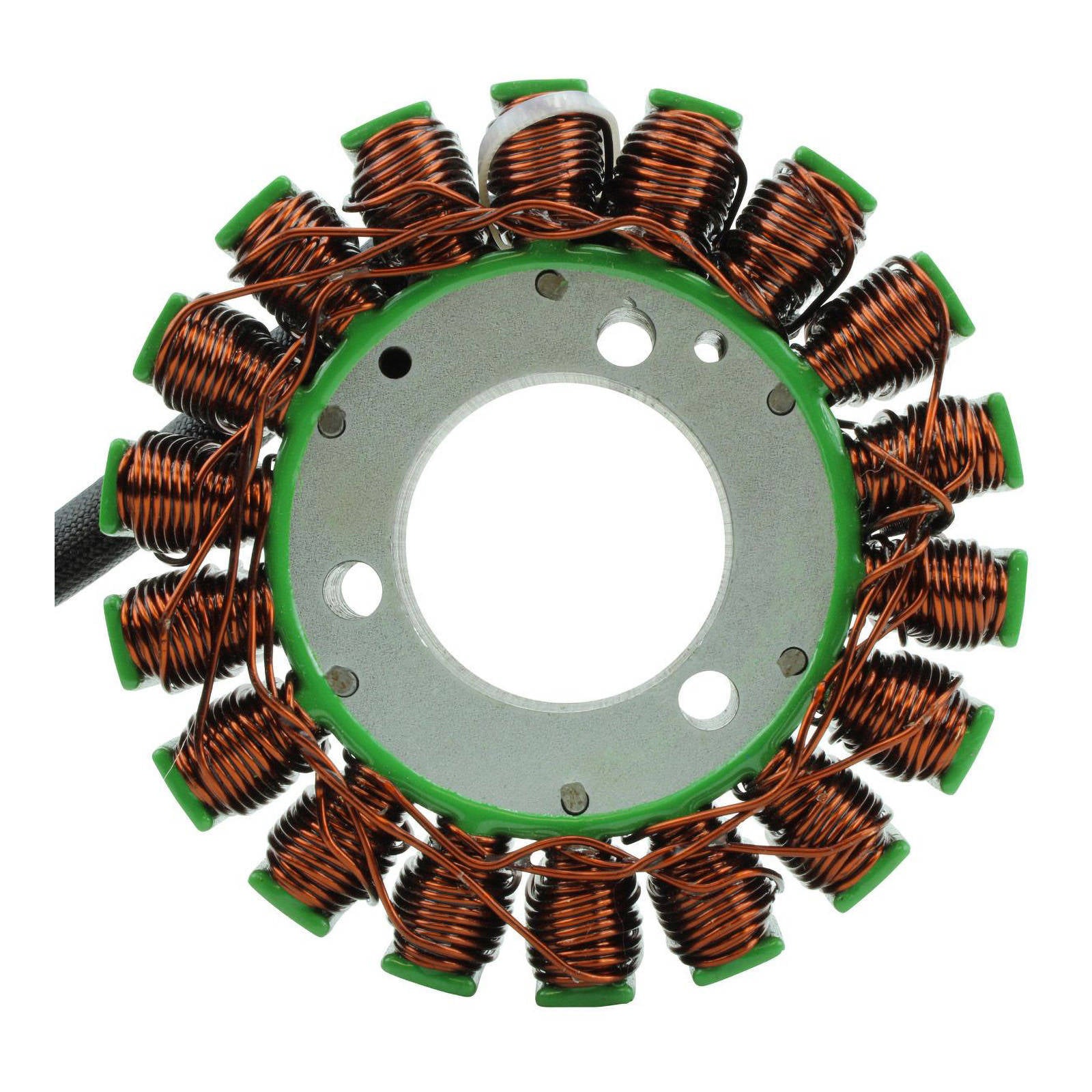

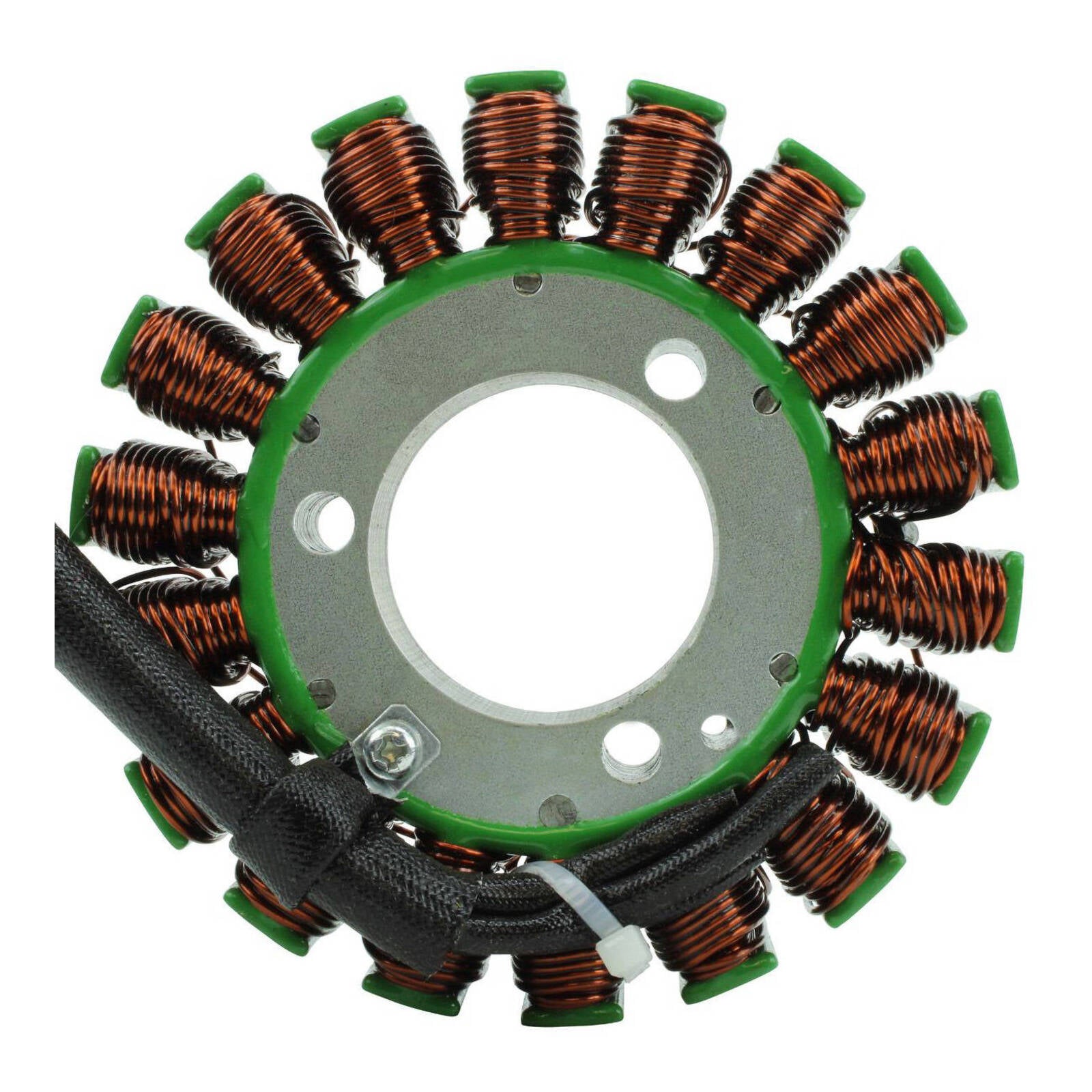

Dimensions:

  • Interior diameter: 38mm
  • Exterior diameter: 105mm
  • Thickness: 19mm
  • Length of wires stator to grommet: 120mm
  • Length of wires grommet to plug: 650mm

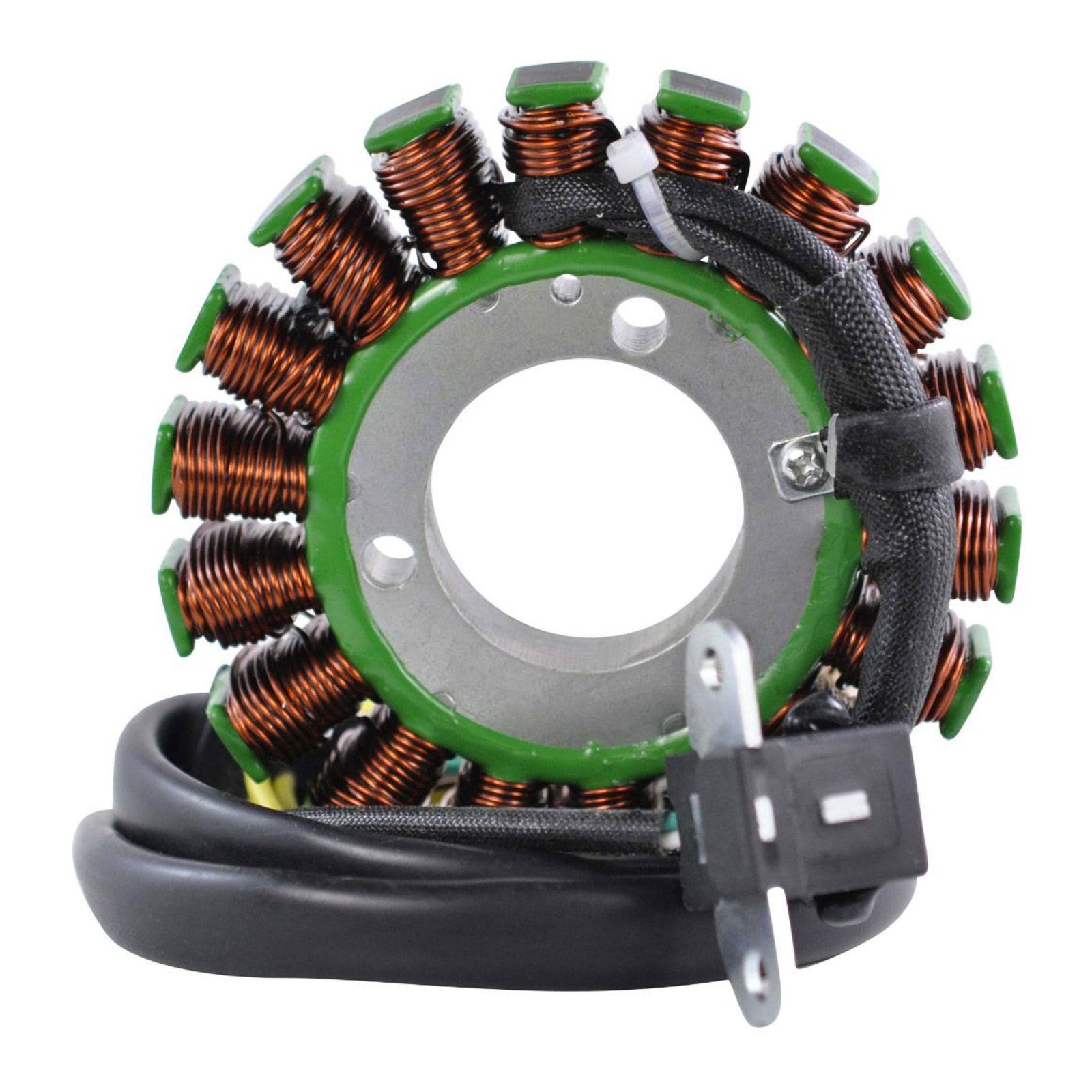

  • Length of pickup coil's wire to grommet: 60mm

Other specifications:

  • Number of wires: 5

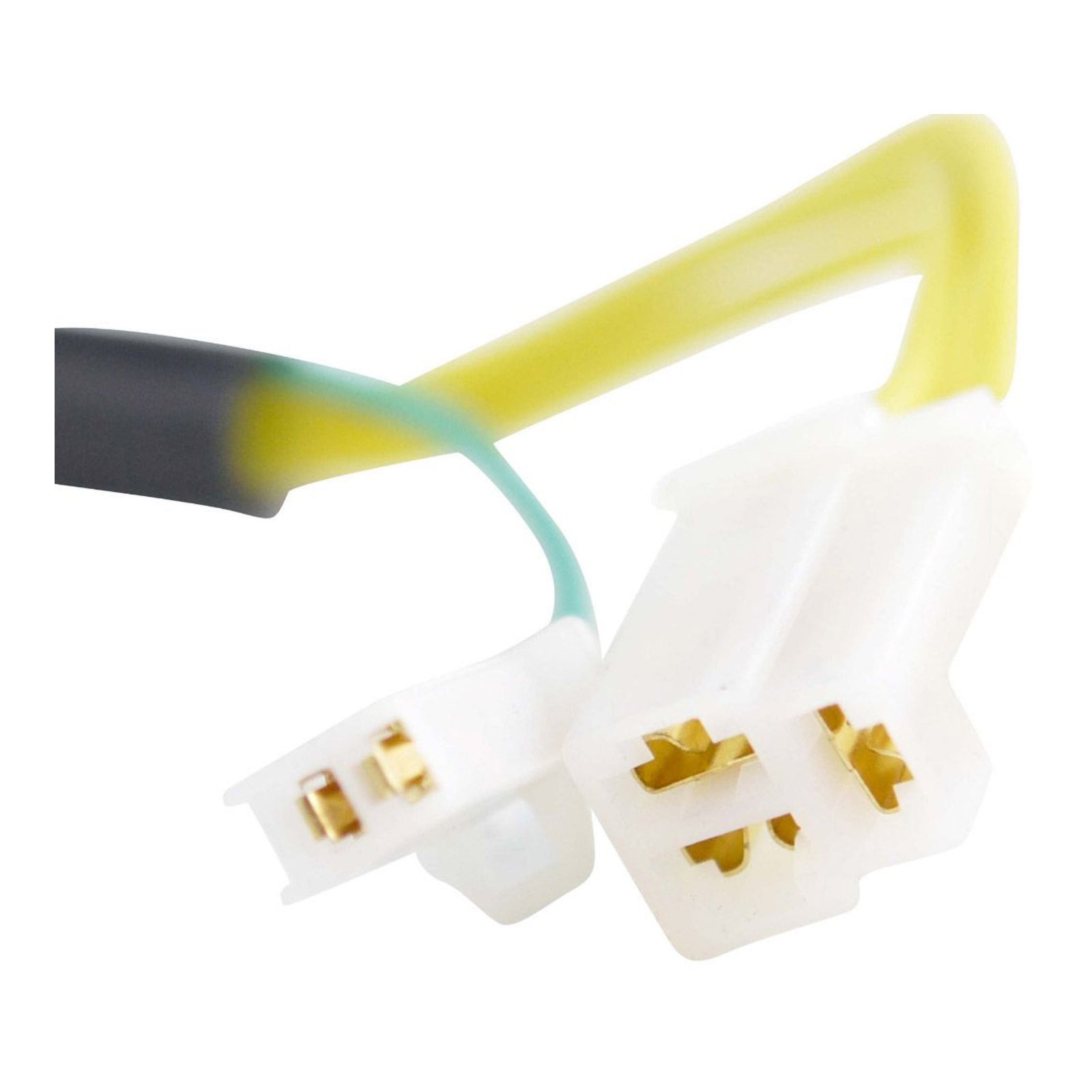

  • Number of plugs: 2
  • Number of pins: 5
  • Wire-to-wire resistance:
    • Alternator: Yellow to Yellow = 0.7 ohms +-20%
    • Pickup: Green to White = 195 ohms +/-20%
